Arbiter 601

hypershark

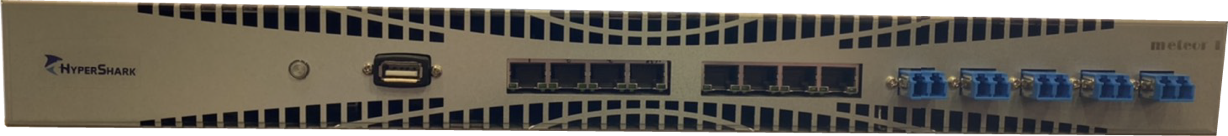

Arbiter 601

The Hypershark Switch series represents the industry's leading ultra-low latency switch family, offering a unique combination of performance, advanced functionality and extensive onboard resources.

Designed to suit the requirements of demanding environments such as ultra-low latency financial equipment.

The transmission time from 1G to 10G is less than 1 microsecond.

Basic Function

  • 4x 100M/1G RJ45 to 4x 10G LC-Duplex Ethernet Media Converter
  • Arbiter 601 achieves exceptionally low latencies of 154 nanoseconds (ns) or less for all workloads.

Benefits

hypershark

Flexibility to expand its output interfaces.

hypershark

Shorten the latency down to 9us, more efficient than traditional ways to receive data from SET.

hypershark

FPGA designed, extremely efficient to deal with packets.

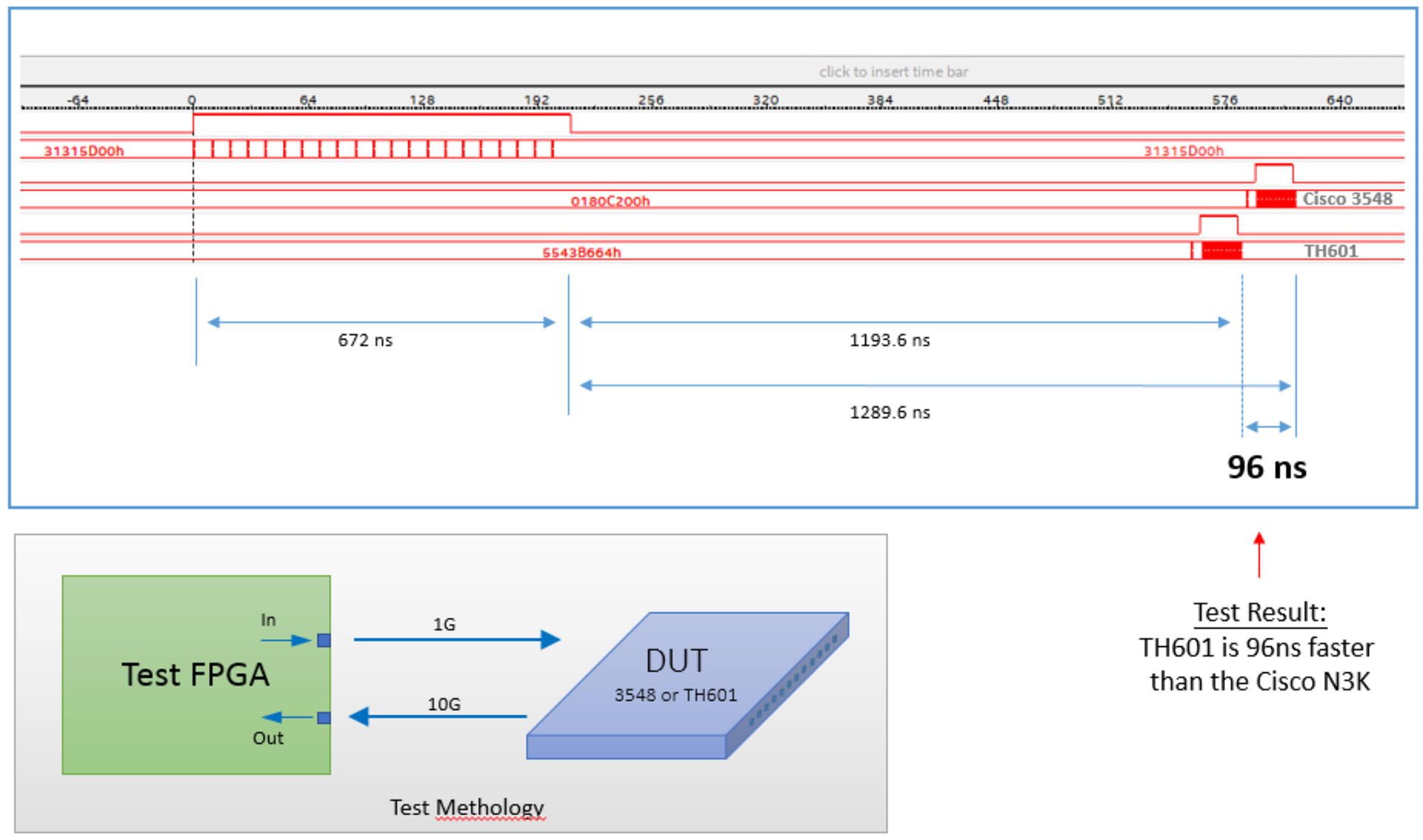

How we achieved

hypershark

TimeCapture 701

TimeCapture 701

TimeCapture 701 is another brilliant design from HyperShark switch series, it provides 7 pairs of ports for the incoming packets of tick-to-trade; An extra out going port for aggregating the packets from other ports.

The packets from the aggregated port will be timestamped with the 10-9 precision.

10G 光介面輸出 精準度達到 3.2 Nano seconds.

Basic Function

  • Timestamping for all packets that go through the device.
  • Measuring the latency from tick to trade packets.
  • 14 x 10G LC-Duplex interfaces on TimeCapture 701 for the packets input.

Benefits

  • FPGA timestamping is much more precise than software timestamping
  • Timestamp resolution : 3.2 ns.
  • TimeCapture 701 can capture up to 7 pairs of tick-to-trade timestamping packets resources.
hypershark

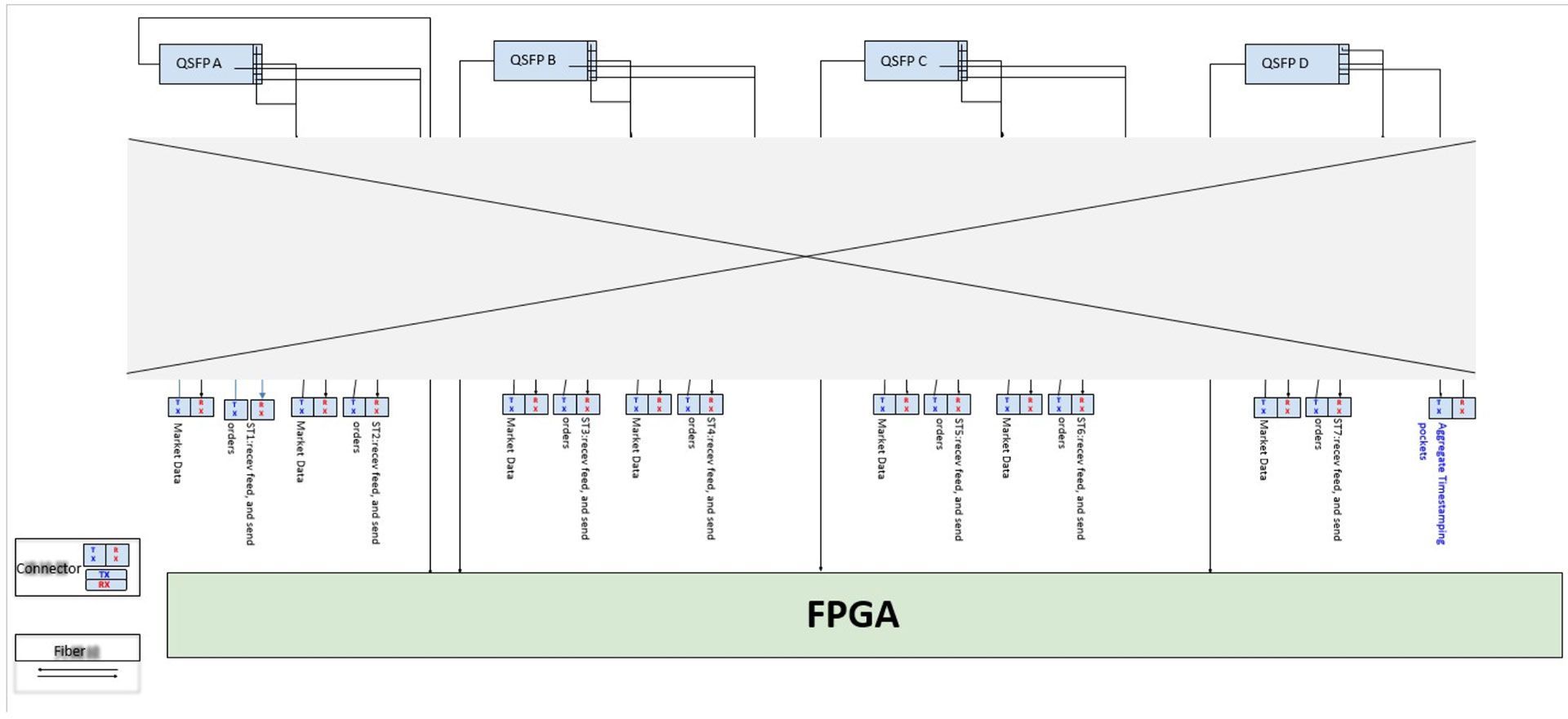

Structure briefing

hypershark
