About Intel® Memory Latency Checker
Intel® MLC is a tool used to measure the required time for a processor fetching data from its cache hierarchy to the memory subsystem. In addition, it can be used for performance analysis in high-frequency trading servers. Measuring these latencies and bandwidth (b/w) is important to establish a baseline for the system under test, and for performance analysis.
Dependencies
- Windows or Linux
- For more detailed, please refer to Intel® Memory Latency Checker v3.9
MLC Test Results
Loaded memory latency: HyperShark's overclocked server V.S general server (Normal)
Buffer size :
162.760MiB/thread for reads
162.760MiB/thread for writes

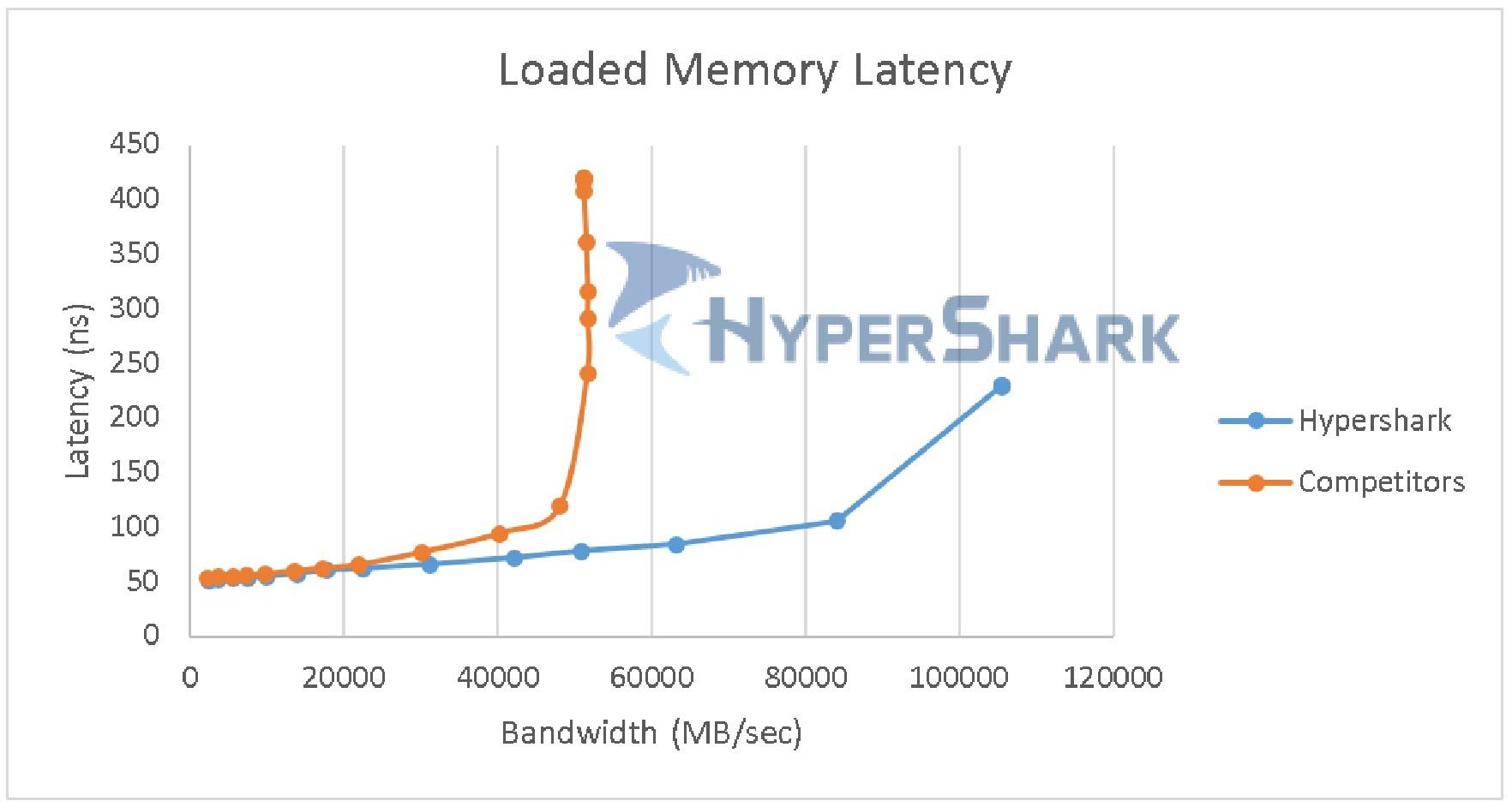

Figure 1. Loaded memory latency: HyperShark vs. Normal
Latency is the delay between a user's action and a web application's response to that action, so high latency can bottleneck a network, reducing its performance. The lower the latency is, the higher the performance will be.
According to the figures 1, HyperShark Combat-XE servers still maintain low latency computing under high-frequency bandwidth load pressure.
R/W Max Bandwidth: HyperShark's overclocking server V.S general server (Normal)

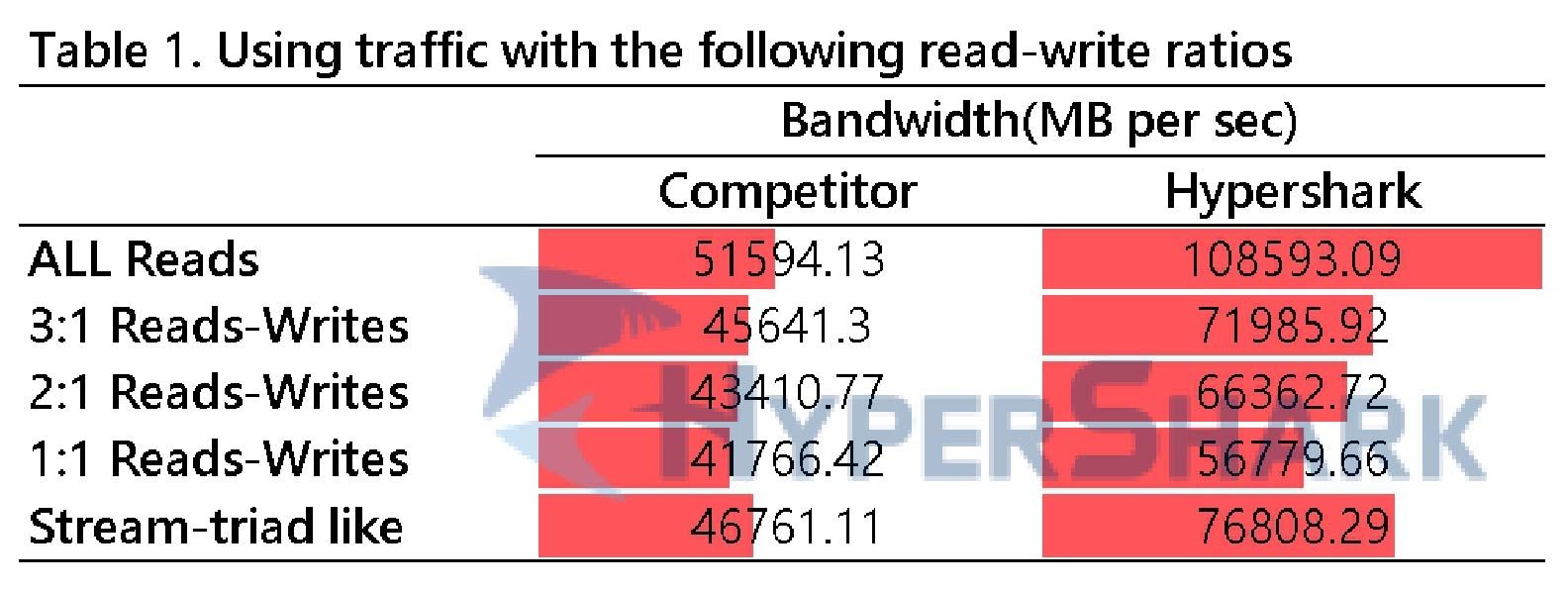

Table 1. Using traffic with the following read-write ratios
The above table shows the efficiency of the processor in reading data from memory (or writing data to memory) per second.The result shows that HyperShark Combat-XE servers are three times faster than general servers on the memory bandwidth benchmarks.
HyperShark Technologies apply a variety of Benchmark algorithms to make Combat XE servers complete the calculation in the shortest time.
Conclusion
We can find out the status of the system implementation through Intel® MLC report. It is suitable for an upgrading criterion to ensure the low-latency performance of the servers. Also, overclocked servers from HyperShark Technologies are outstanding performance in this Intel® MLC test.
We welcome your inquiries about Intel® MLC; HyperShark Technologies can offer you a series of solutions to assist your daily workloads and algorithmic requirements. Besides, we can provide test report analysis and suggestions to your company! If any question, please contact us, thank you！
